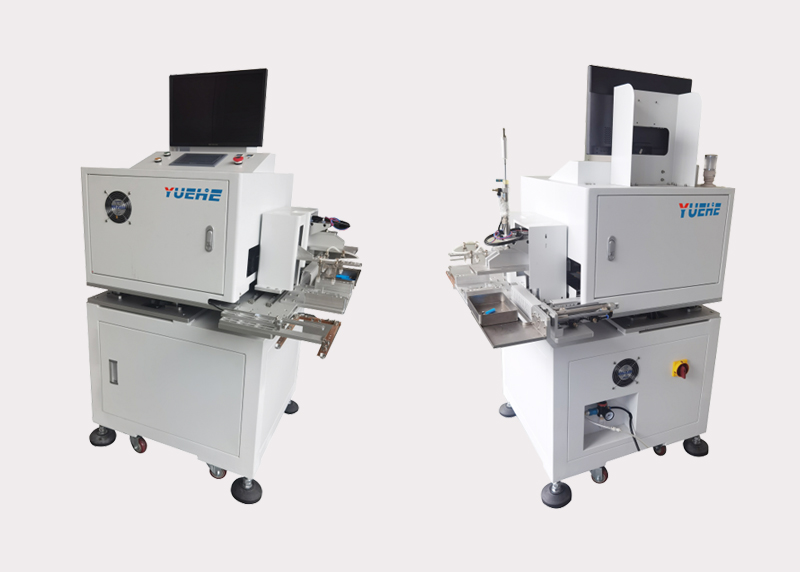

Scope of application:
Network test of various mobile phone shell antennas and tablet computer shells.
advantage:
1. The automatic operation of the equipment replaces labor, and the production capacity is 1200pcs/H.
2. Support testing S11 parameters, the deepest test waveform return loss is -50dB; measure frequency offset, accuracy: test bandwidth/1601.
3. It is suitable for 5071C and other network splitters, which can be connected to the switch box expansion port, and the number of test antennas is up to 16.
4. The modular design of the equipment makes it easy to replace the part number. Only the part of the mechanism in contact with the product needs to be replaced,
which saves the cost of replacing the part number.
5. The equipment can be placed next to the assembly line, which is convenient for erection, debugging and maintenance.
6. The equipment can automatically place the defective products in the defective area to avoid mixing.
7. The equipment covers an area of only 0.82m2, which saves space and improves space utilization.
| Project | Parameter | Describe |
| Dimensions | Length 841mm*width 970mm*height 1610mm | |
| Detect product size | Length 180mm, width 85mm | Customizable |
| Test Range | 400KHz-8.5GHz | |
| Measurement parameters | S11, waveform return loss, frequency offset | |
| Number of test antennas | 1-16 pairs | |
| Trace noise | <0.004dBrms(70KHz) | |
| Control System | Yuehe automatic network tester control system V1.0 | |
| Power requirements | AC220V 50~60HZ | |
| Power | 400W | |
| Air pressure requirements | 0.5-0.7MPA | |
| Weight | 200KG | |
| Capacity | 1200PCS/H | |
| Equipment cost recovery cycle | 4 months | Calculated at 80% equipment utilization rate |
?
|
